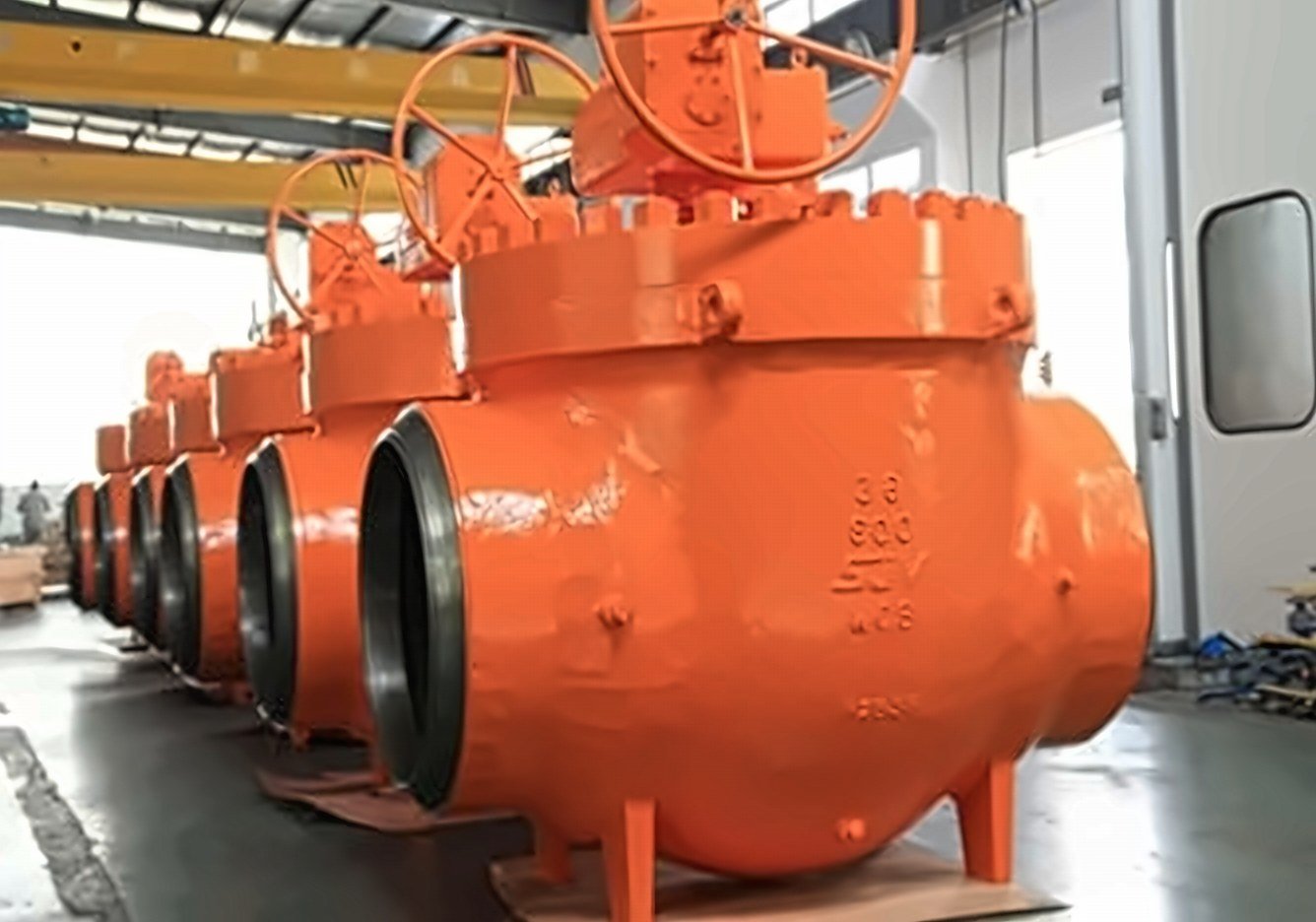

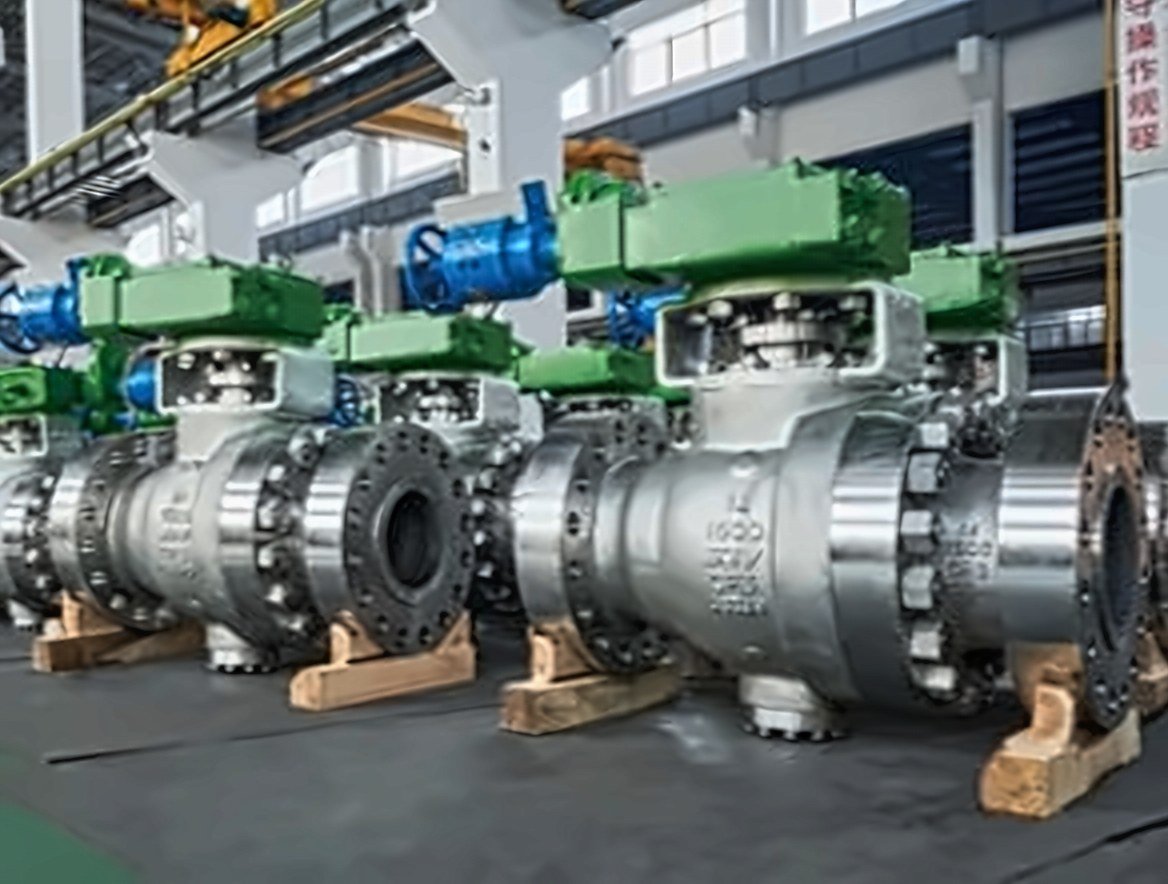

Floating and trunnion-mounted ball valves in split-body, top-entry, side-entry and fully welded designs.
| Size range | 1/2" to 48" |
|---|---|
| Pressure class | 150# to 2500# |
| Standards | API 6D, API 6A, ISO 17292, BS 5351 |
| Ends | Flanged, BW, SW, NPT |
| Operation | Lever, gear, pneumatic, hydraulic, electric |

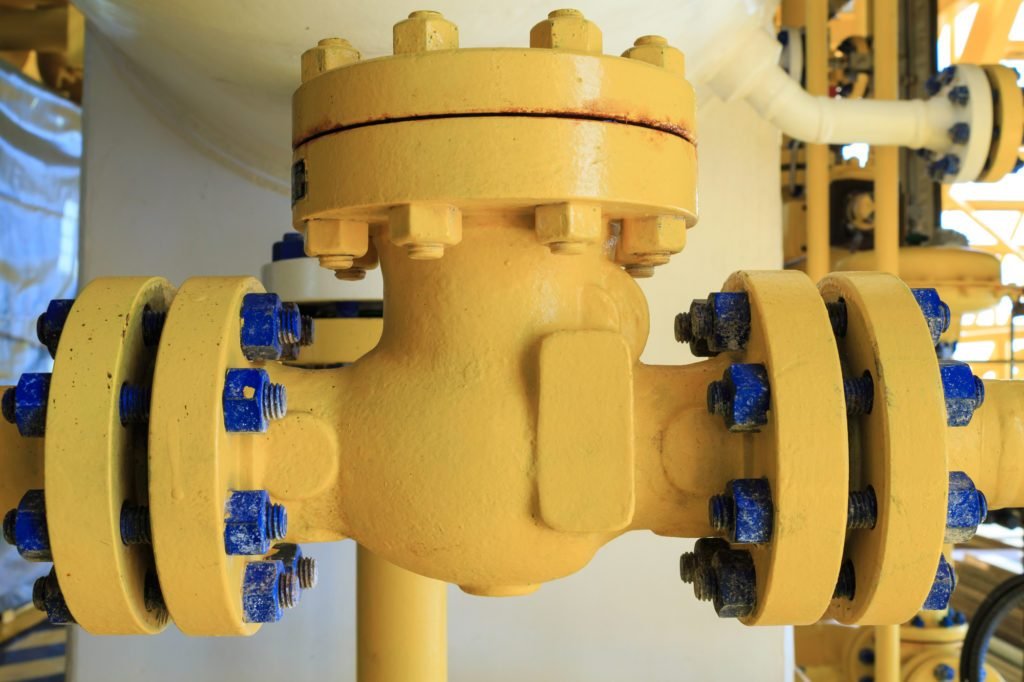

Cast and forged steel gate, globe and check valves for general isolation, throttling and backflow prevention.
| Cast size range | 1/2" to 48", Class 150 / 300 / 600 |
|---|---|
| Forged size range | 1/2" to 2", Class 800 / 1500 |
| Standards | API 600, API 602, API 6D, BS 1414, BS 1873, BS 1868, BS 5352 |
| Ends | Flanged, BW, SW, NPT |

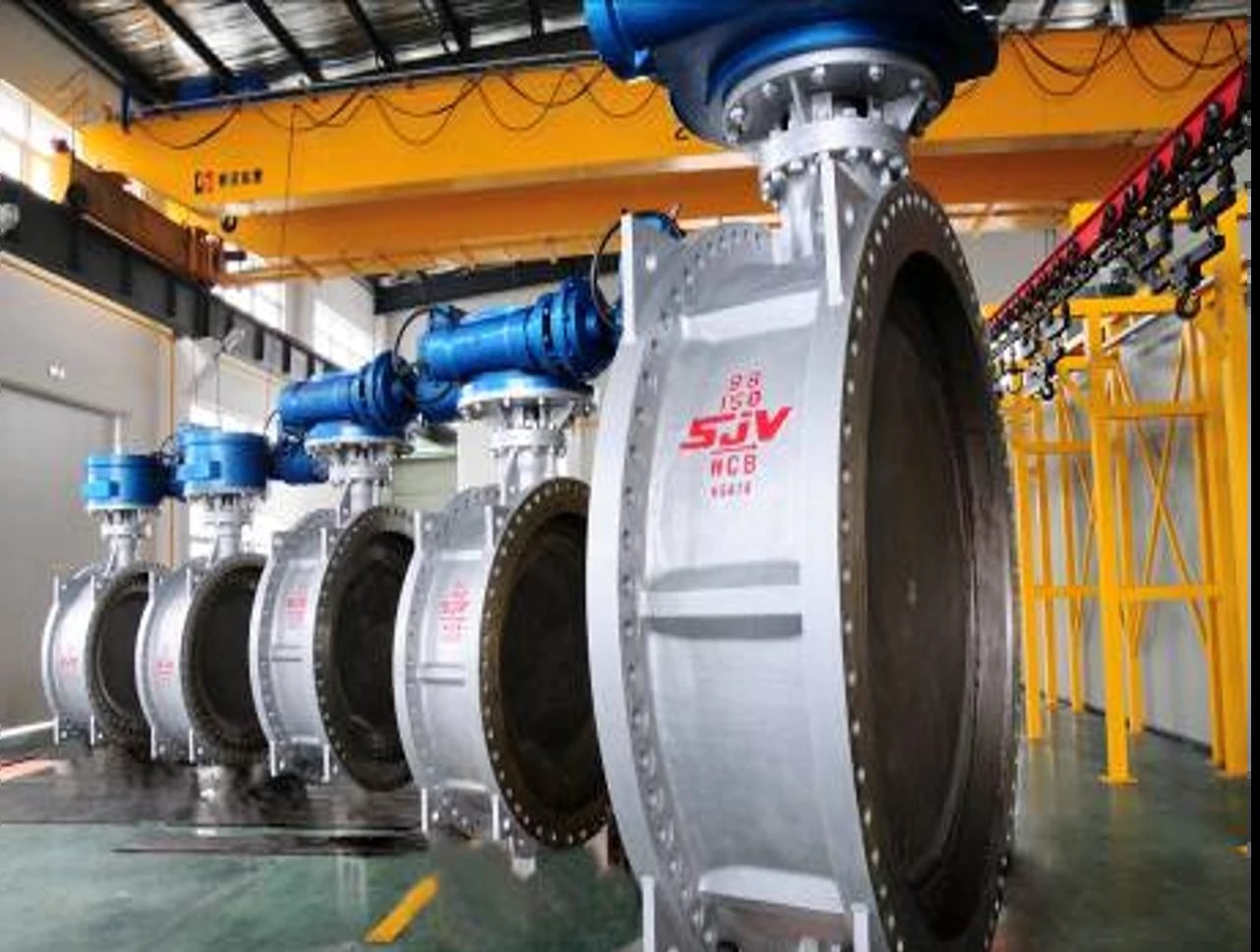

Concentric and double-offset butterfly valves for large-bore water, cooling and utility lines.
| Types | Wafer, semi-lug, lug, single & double flanged |
|---|---|
| Designs | Concentric, double offset, triple offset |
| Standards | API 609, BS 5155 |
| Linings | Rubber, epoxy, PTFE |
Lubricated and sleeved plug valves for quick quarter-turn isolation in slurry and hydrocarbon service.
| Size range | 1/2" to 24" |
|---|---|
| Pressure class | 150# to 900# |
| Standard | API 599, API 6D |
Valves engineered for extreme service: cryogenic, metal-seated, double block & bleed and exotic alloys.
| Types | Cryogenic (to -196°C), metal-seated, DBB, needle & instrument manifolds |
|---|---|
| Testing | Cryogenic, fire-safe (API 607), fugitive emission (ISO 15848) |
Y-type, basket and temporary strainers plus industrial filters to protect pumps, meters and control valves.
| Types | Y-type, basket, duplex basket, T-type, temporary cone |
|---|---|
| Size range | 1/2" to 36" |
| Mesh | 20 to 200 mesh, perforated |
