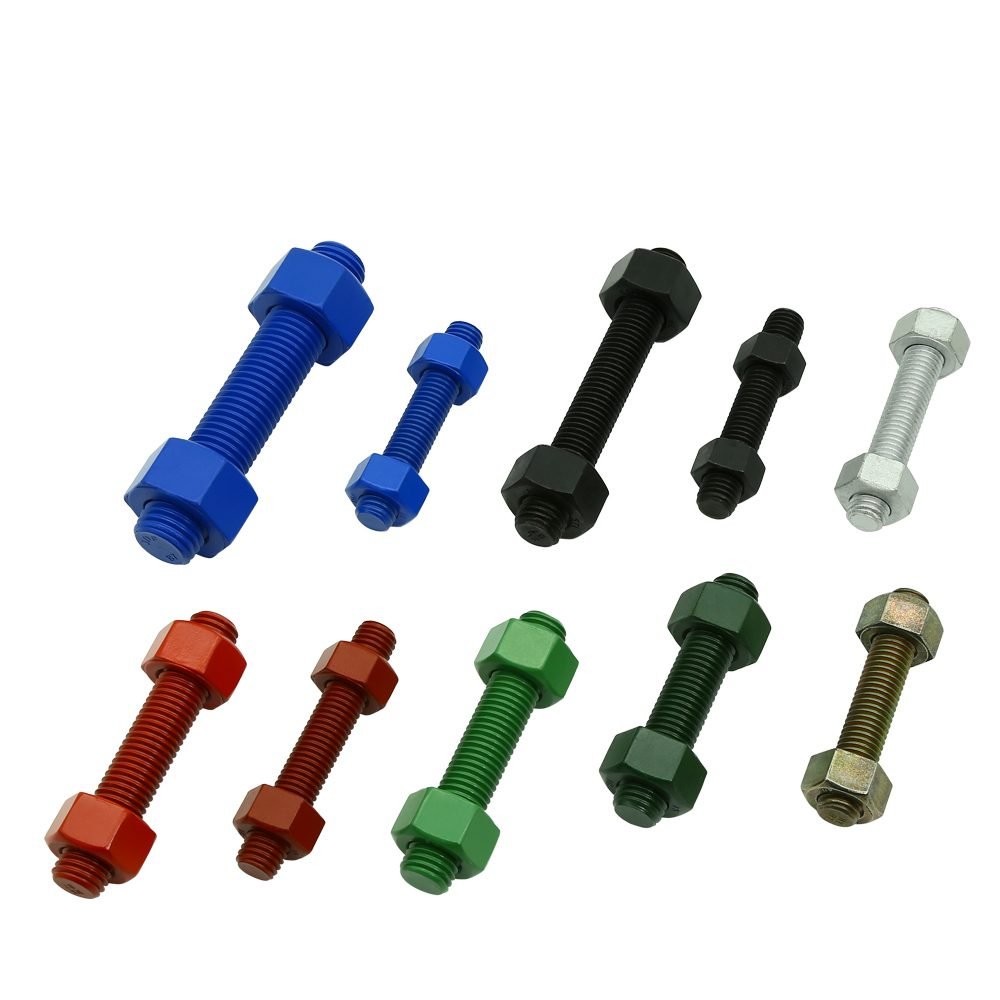

Fully and partially threaded stud bolts supplied complete with heavy hex nuts, with optional PTFE, Xylan or HDG coating.
| Diameter | 1/4" to 4" |
|---|---|
| Length | Any length to order |
| Standards | ASME B18.2.1, B18.2.2, ASTM A193 / A194 / A320 |
| Coatings | Zinc, HDG, PTFE, Xylan |
Non-standard bolting for supports, foundations and structural connections.
| Types | U-bolts, anchor bolts, hex bolts, threaded rods |
|---|---|
| Standards | ASTM A307, A325, A490, customer drawings |

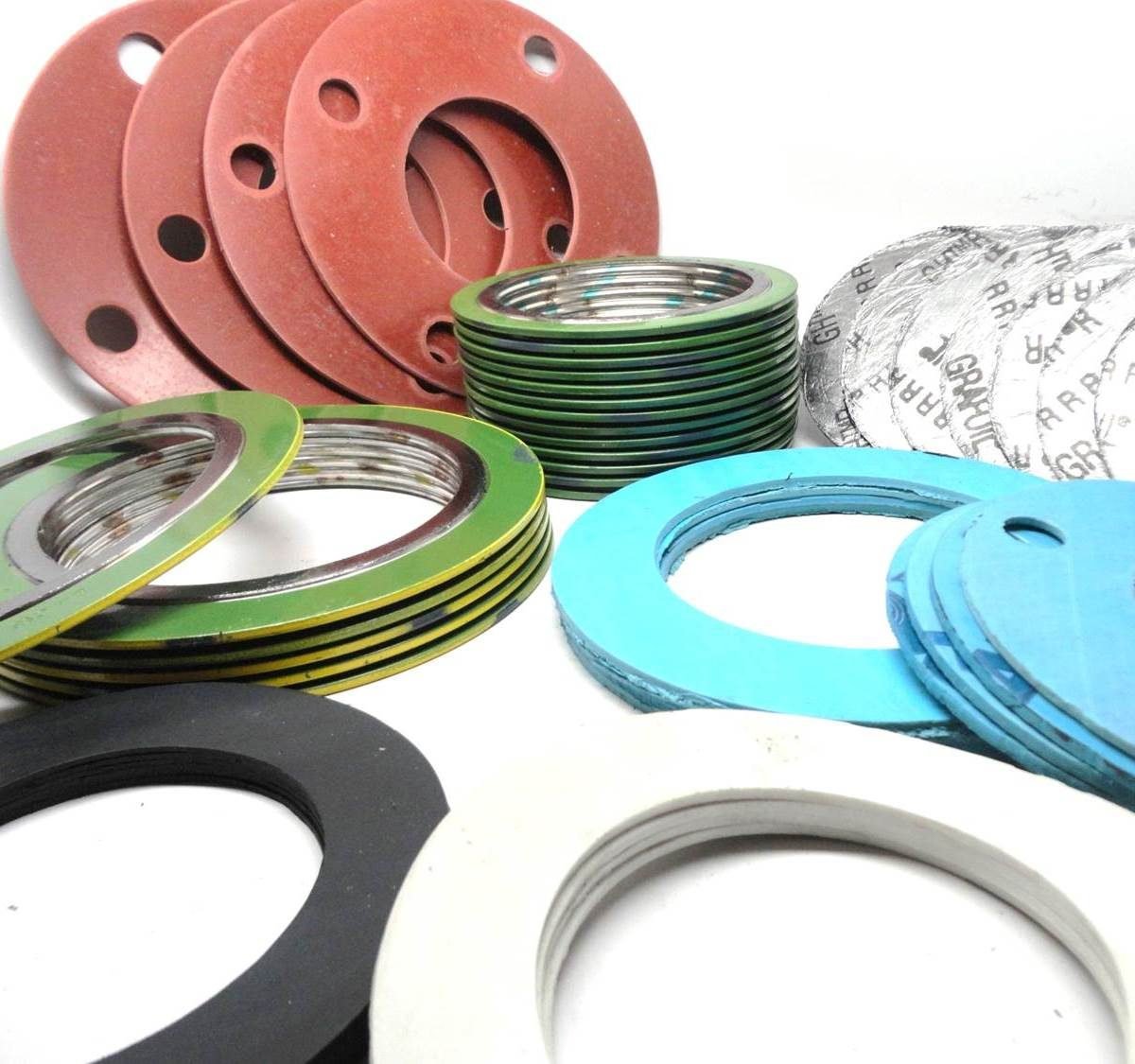

Metallic, semi-metallic and soft gaskets for every flange class and facing.
| Size range | 1/2" to 96" |
|---|---|
| Types | Spiral wound, ring joint (R/RX/BX), kammprofile, tanged graphite, PTFE, rubber sheets |
| Standards | ASME B16.20, B16.21 |
Insulating gasket kits with sleeves and washers to electrically isolate flanges for cathodic protection.
| Types | Type E, F, D |
|---|---|
| Gasket material | Neoprene-faced phenolic, G10, G11 |
| Sleeves & washers | G10 / phenolic, steel washers |
