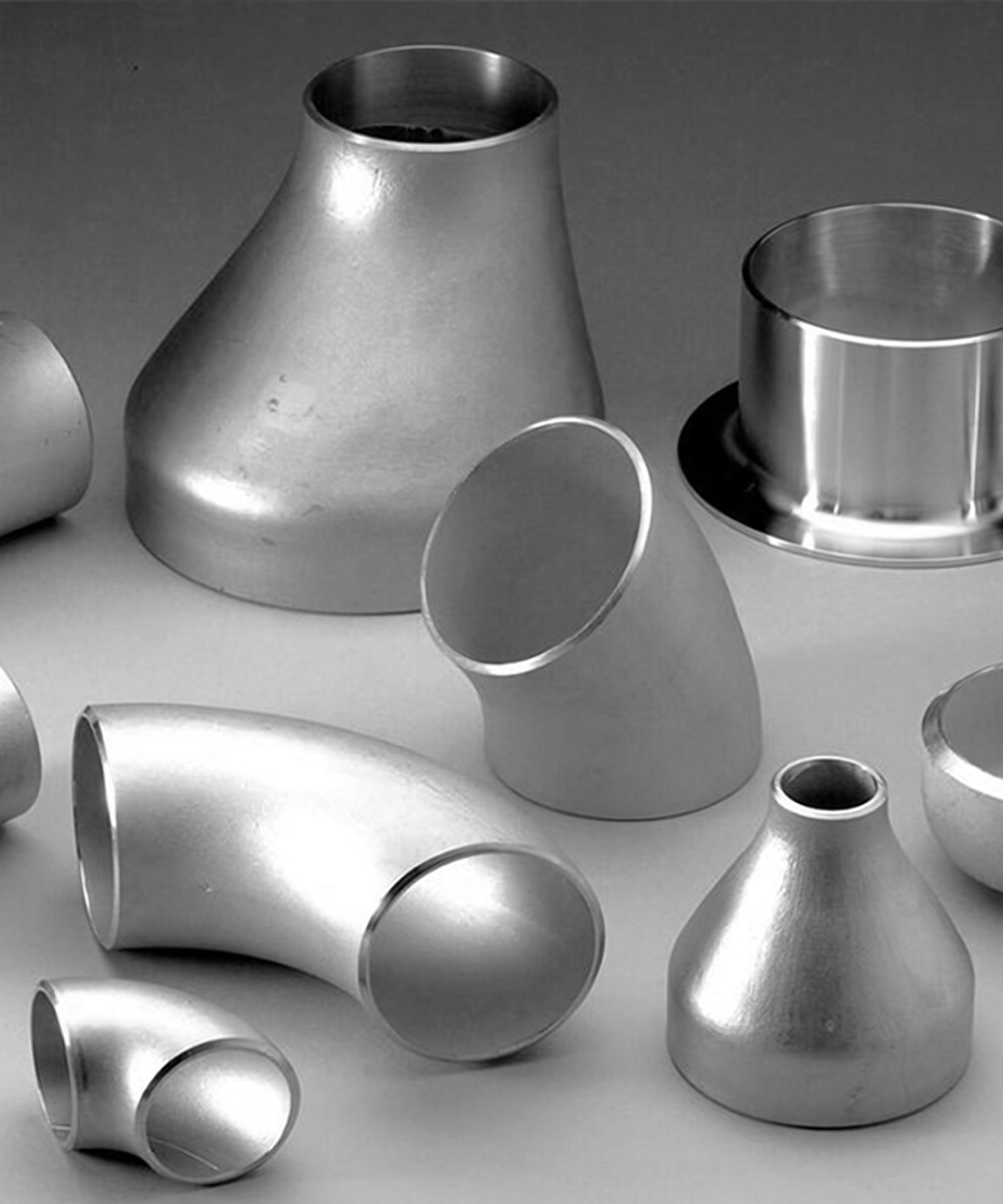

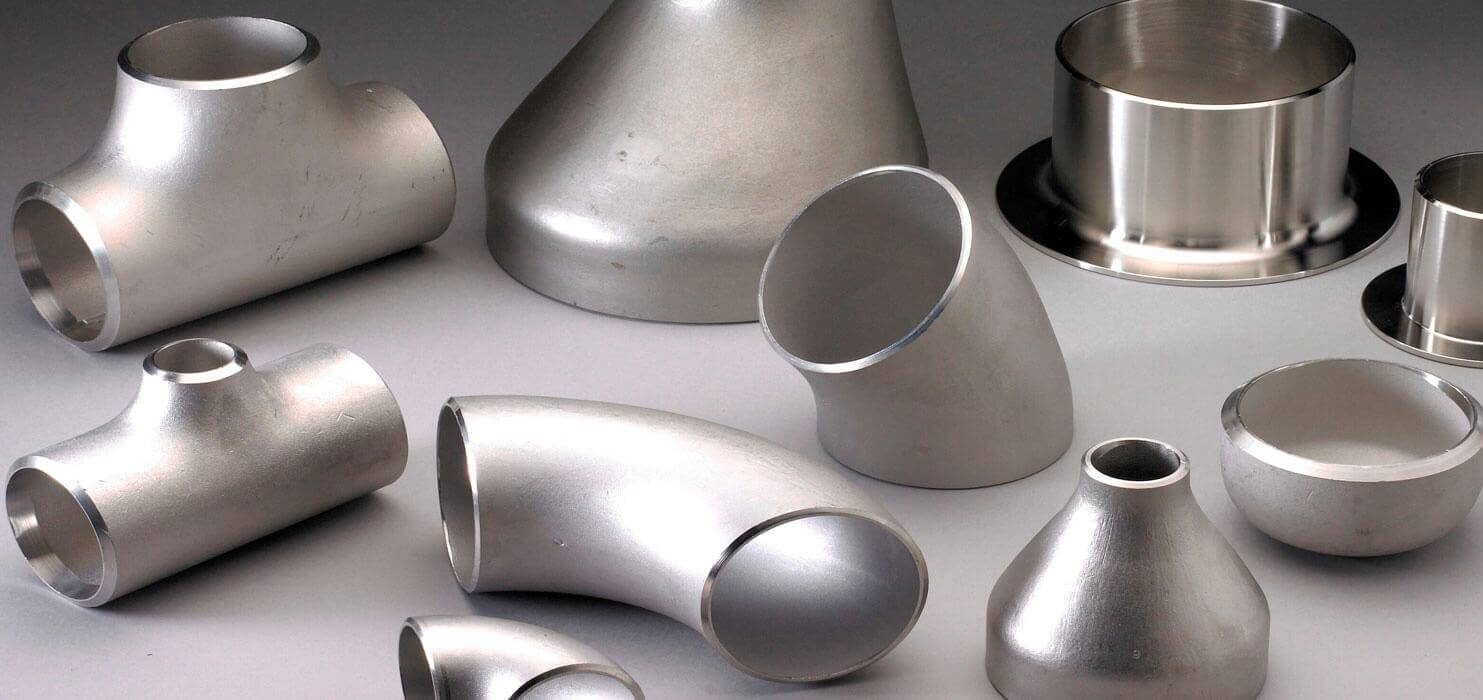

Elbows, tees, reducers and caps in seamless and welded construction for all pipeline and process classes.
| Size range | 1/2" to 48" seamless; larger welded |
|---|---|
| Types | Elbows 45°/90°/180°, equal & reducing tees, concentric & eccentric reducers, caps |
| Standards | ASME B16.9, B16.25, MSS SP-75 |
| Wall thickness | To match pipe schedule |
Socket-weld and threaded forged fittings plus branch outlets for small-bore, high-pressure connections.
| Size range | 1/8" to 4" |
|---|---|
| Classes | 2000#, 3000#, 6000#, 9000# |
| Types | Elbows, tees, couplings, unions, plugs, bushings, swages, weldolets, sockolets, thredolets, nipolets |
| Standards | ASME B16.11, MSS SP-97, MSS SP-95 |

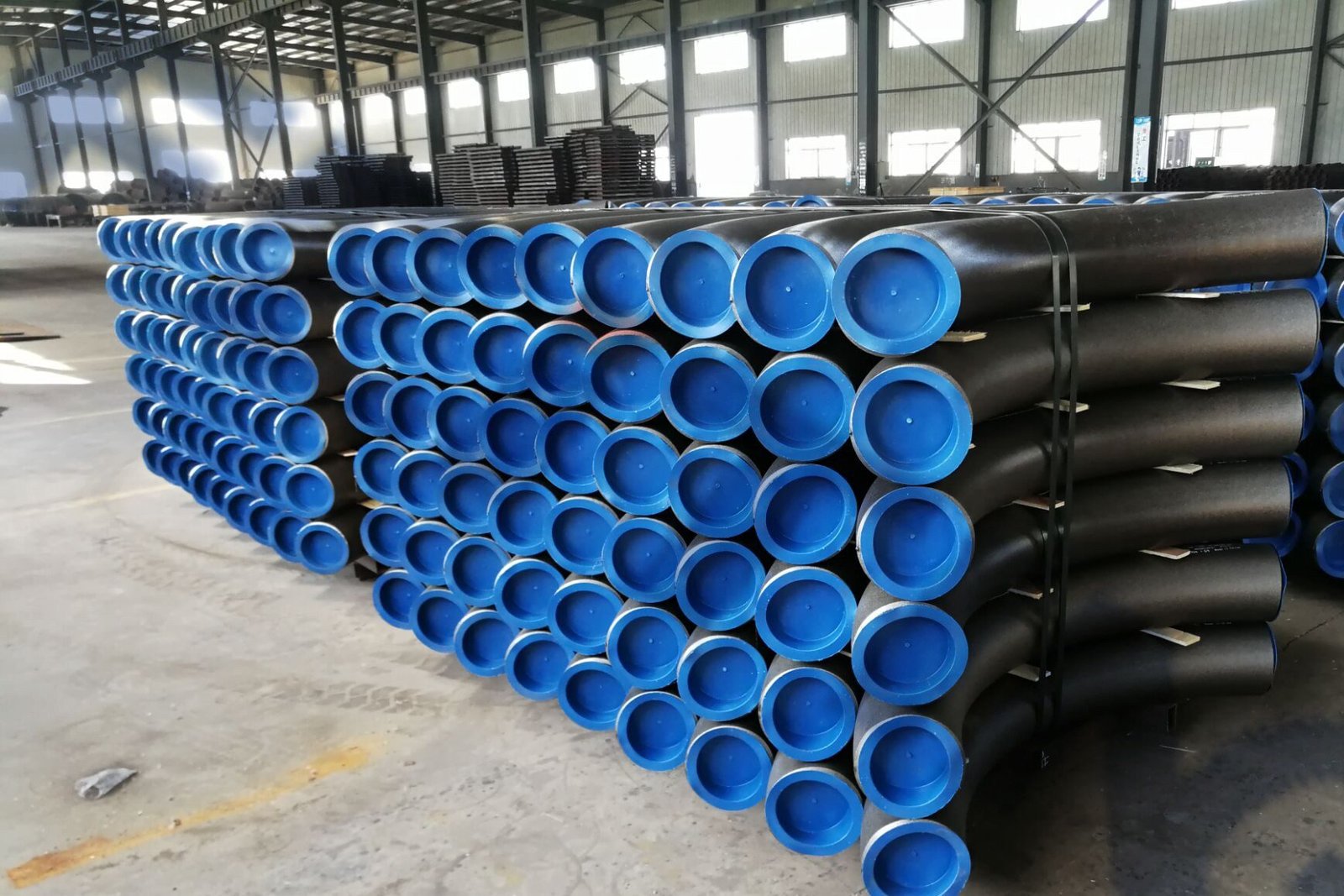

Hot induction bends and long-radius sweep bends that reduce weld count and pressure loss, with uniform wall thickness and controlled ovality.
| Size range | Up to 48" |
|---|---|
| Radius | 3D, 5D, 6D and custom |
| Standards | ASME B16.49, ISO 15590-1 |
| Testing | NDT, hardness, dimensional reports |
Special configuration fittings for lap-joint flanges, branch flow and manifolds.
| Size range | 1/2" to 48" |
|---|---|
| Types | Stub ends (MSS / ASA), laterals 45°, Y-tees, crosses |
| Standards | ASME B16.9, MSS SP-43 |
